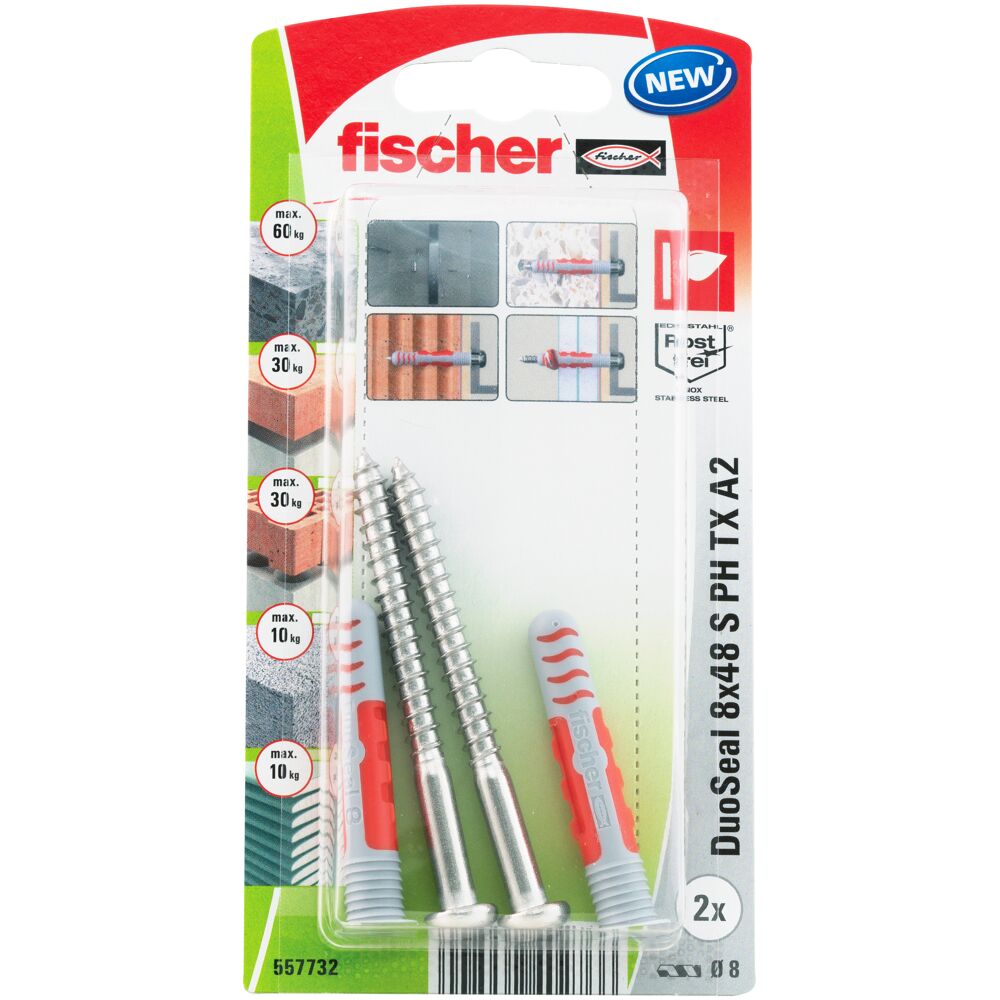

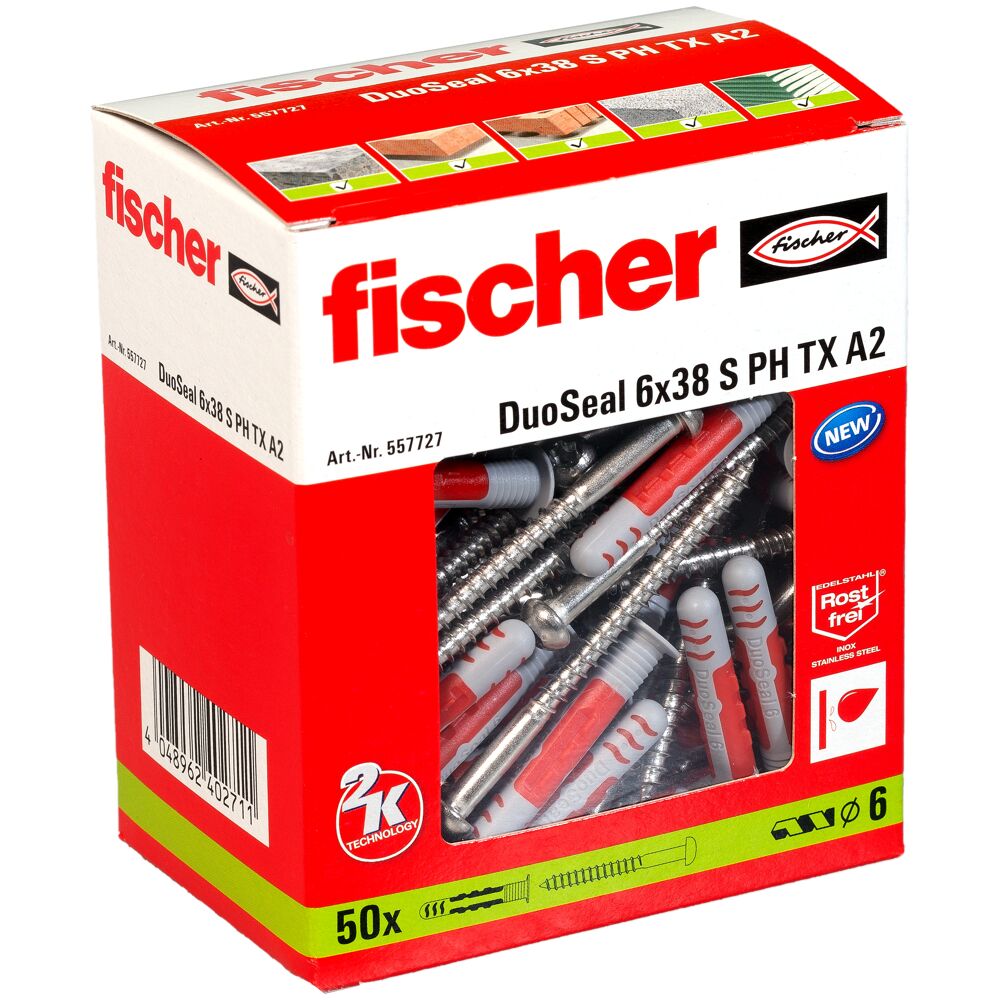

Duo-Seal (With Stainless Steel Screws)

SKU: 557727
$345.12
Drill Diameter
Min. Base Material Thickness

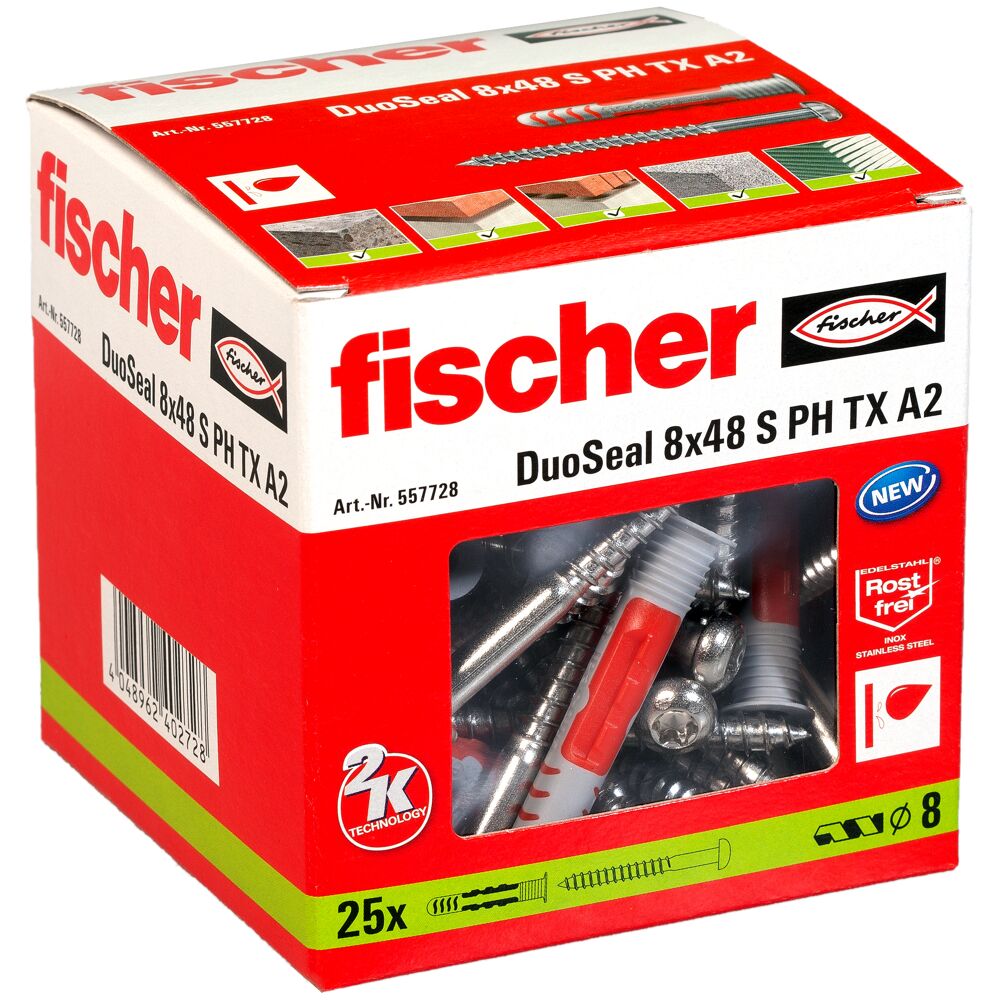

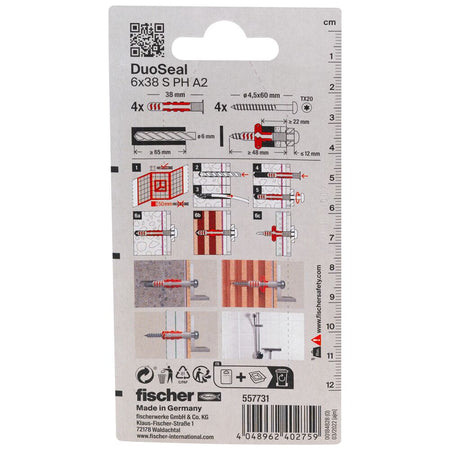

Package

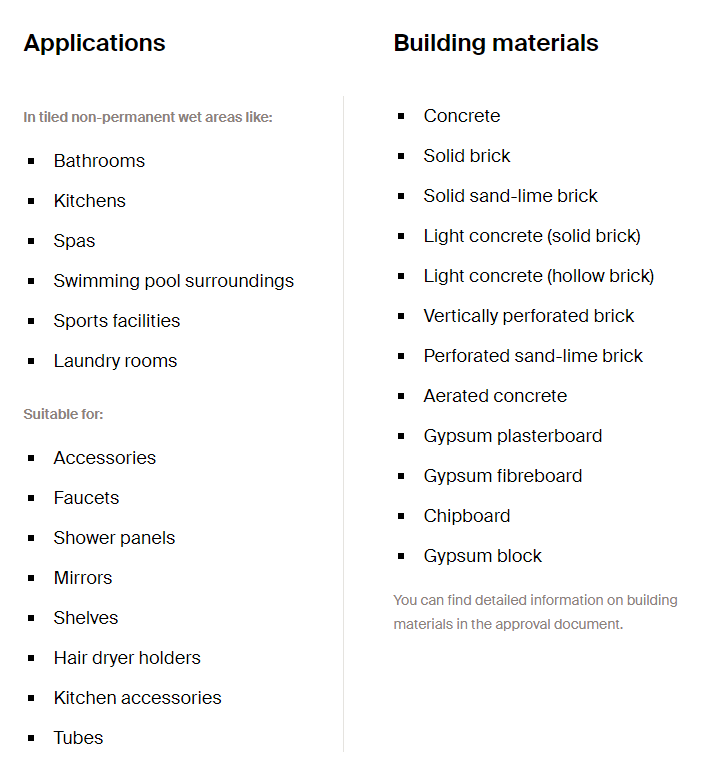

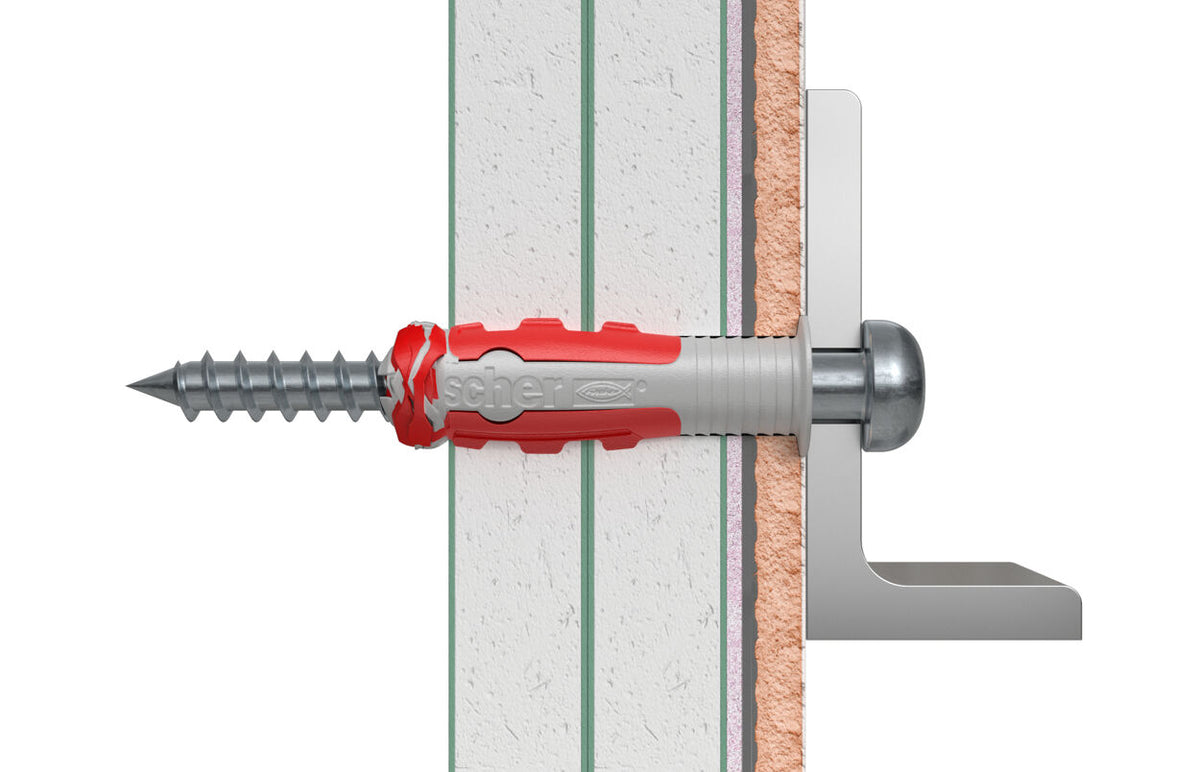

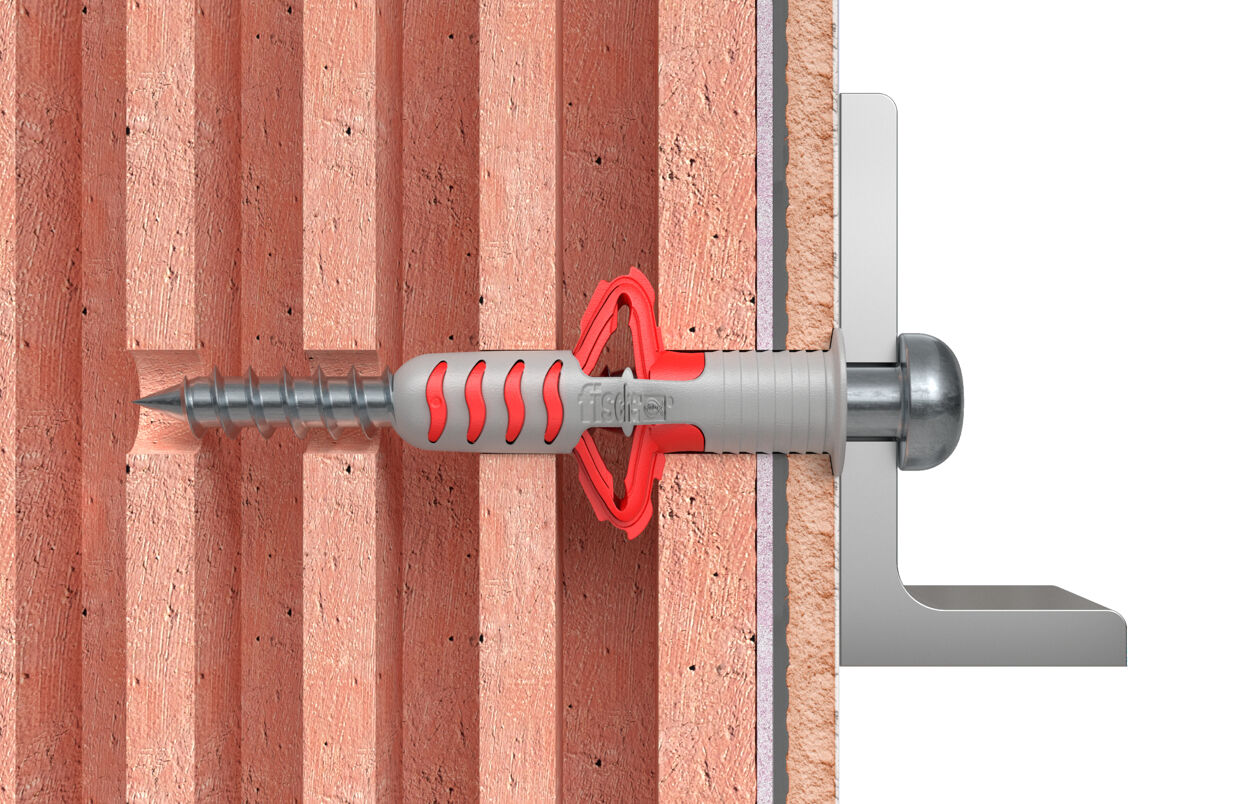

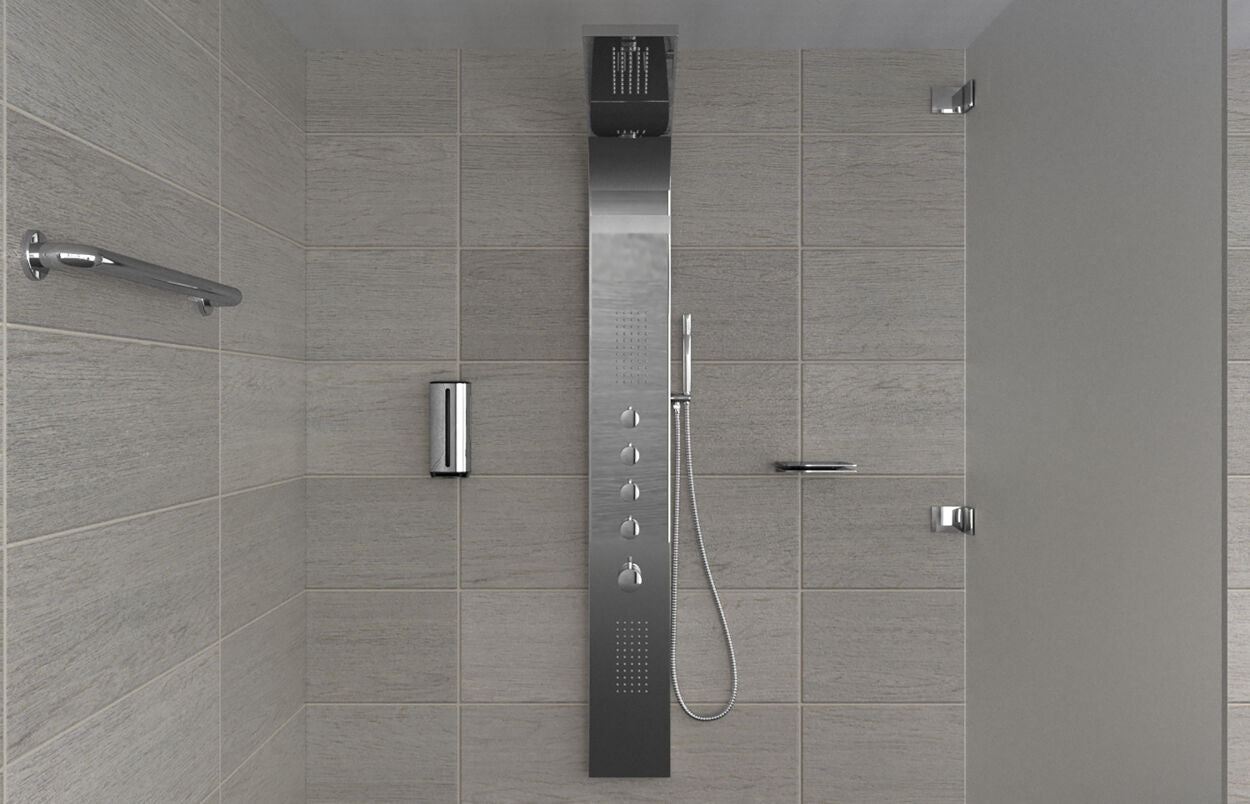

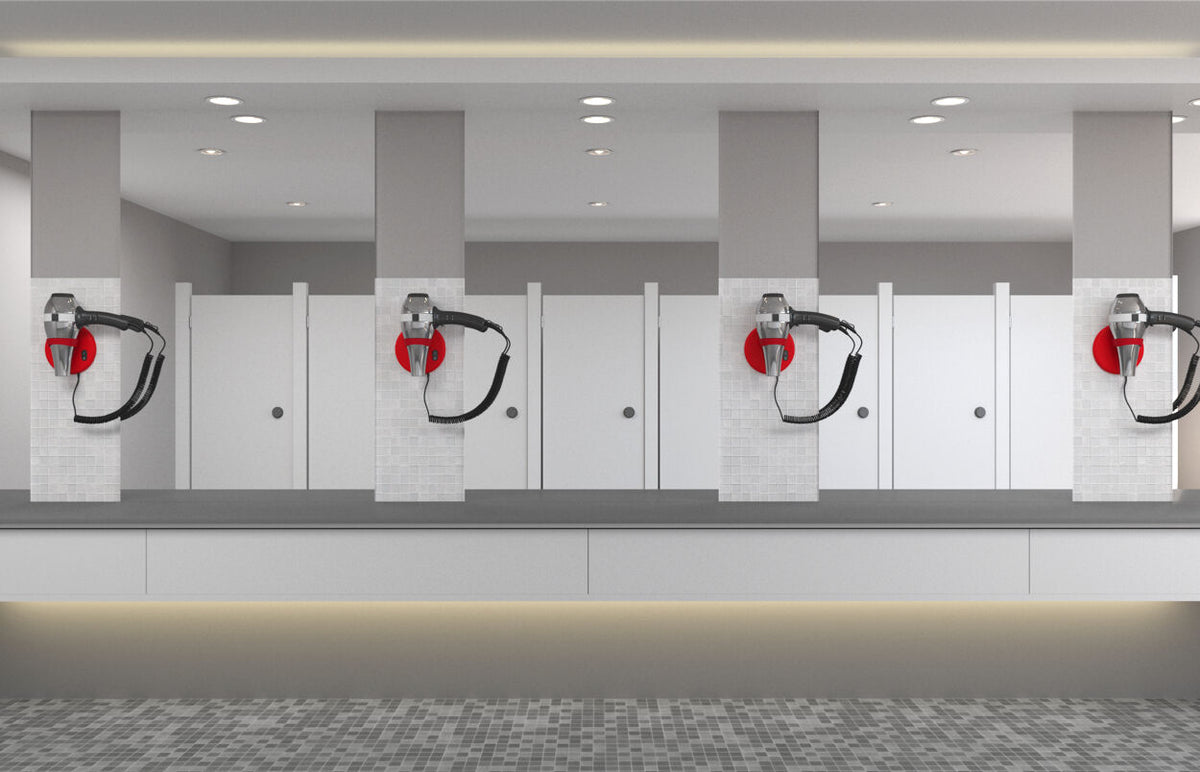

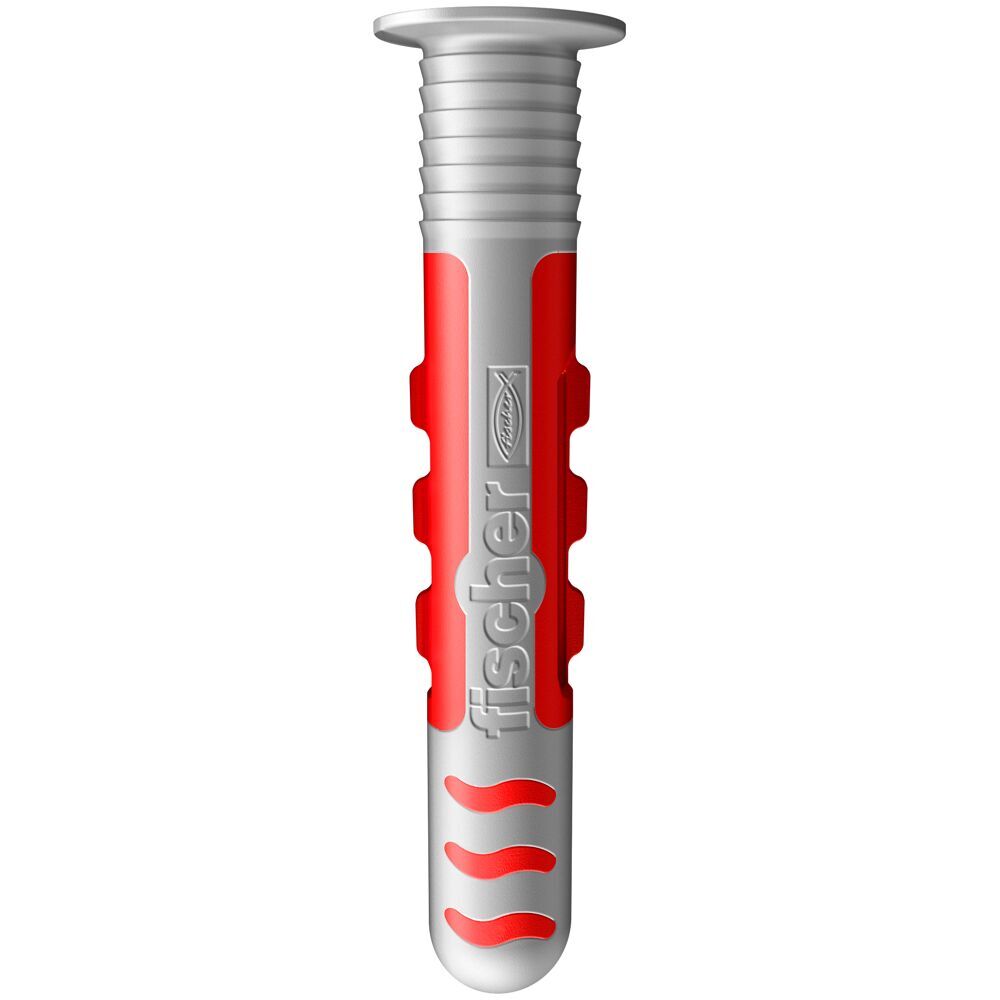

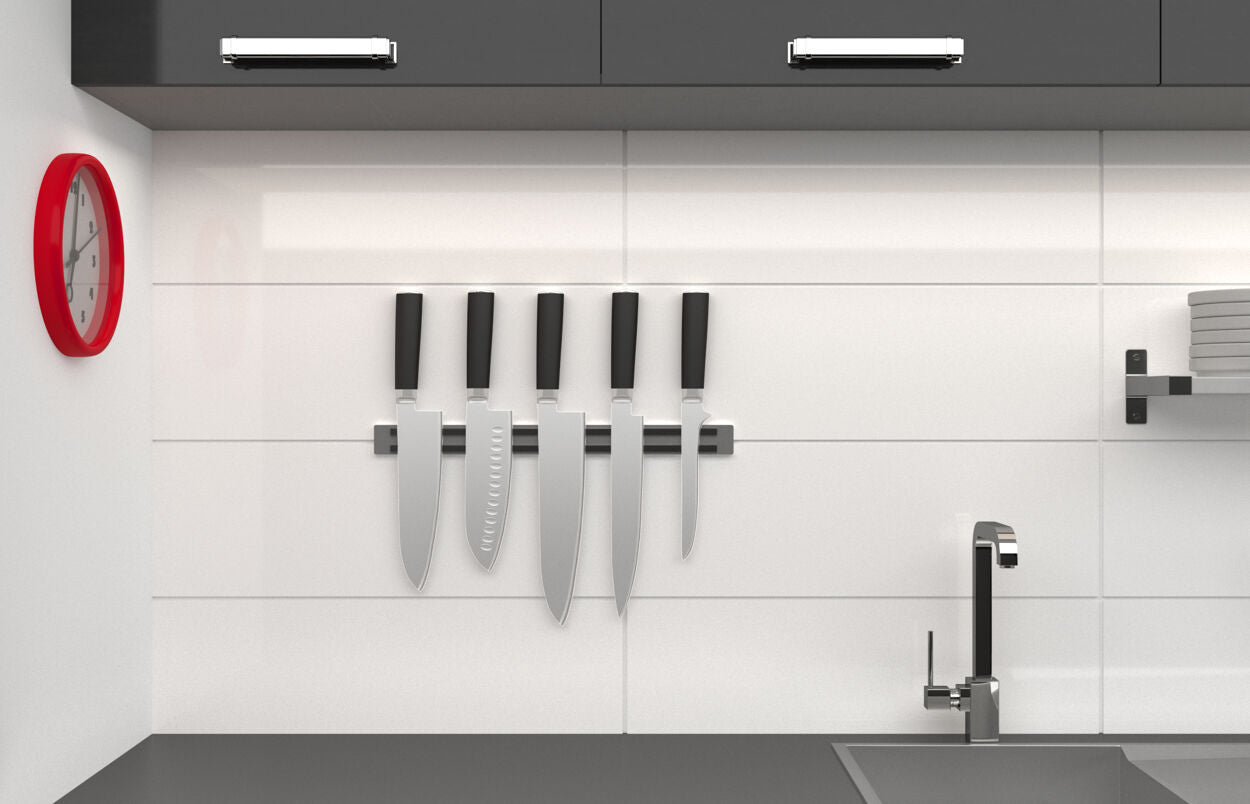

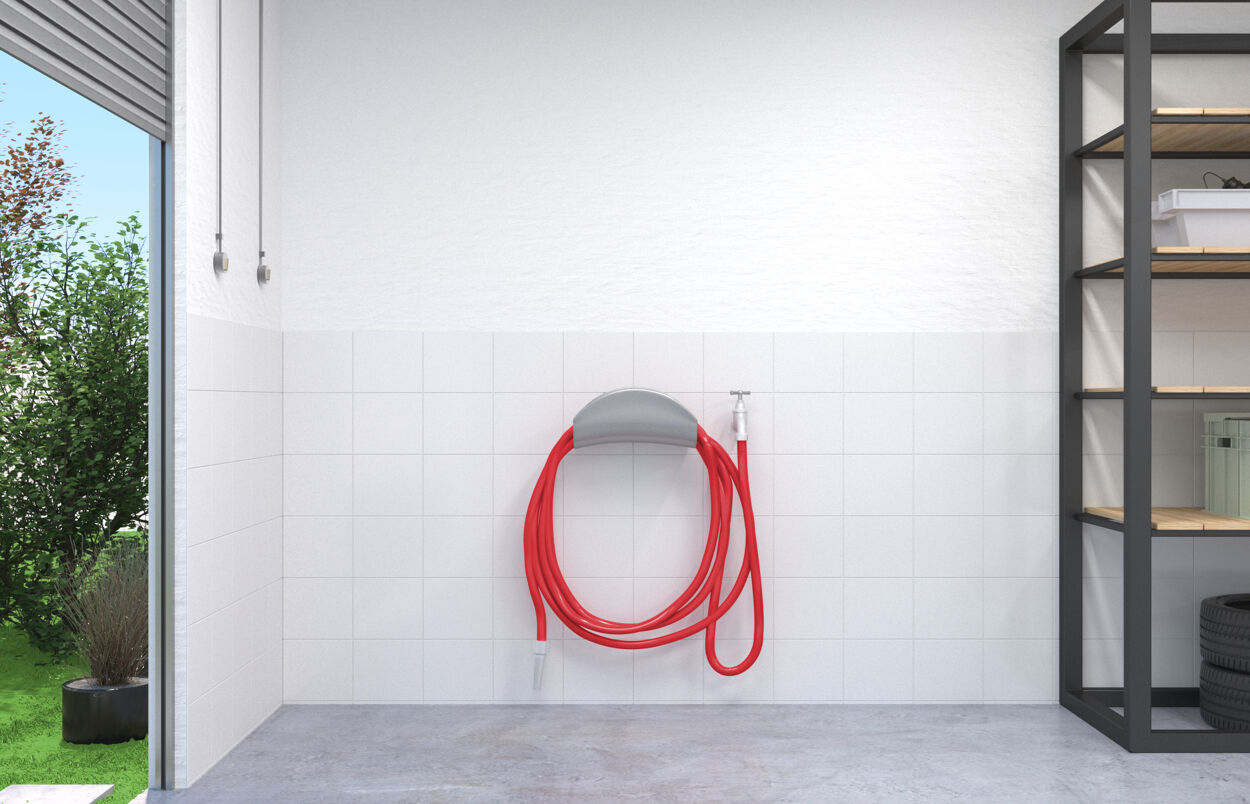

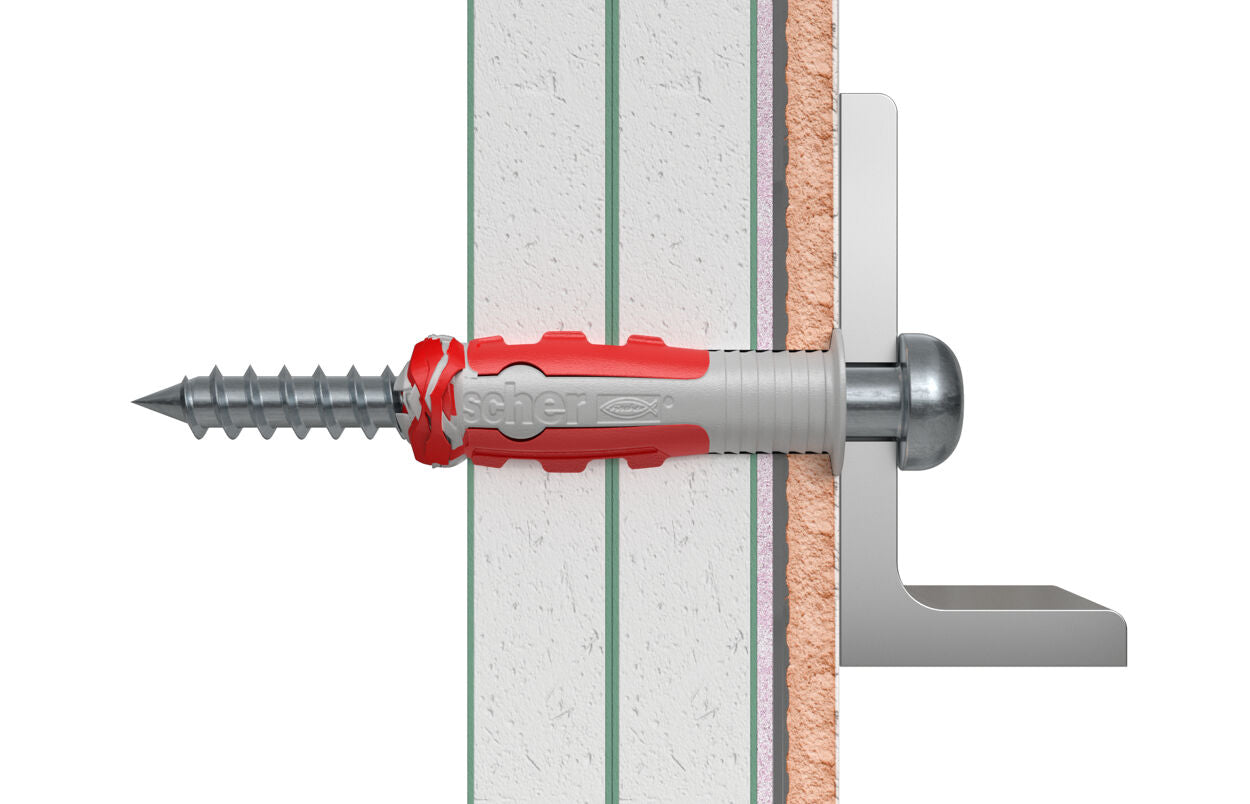

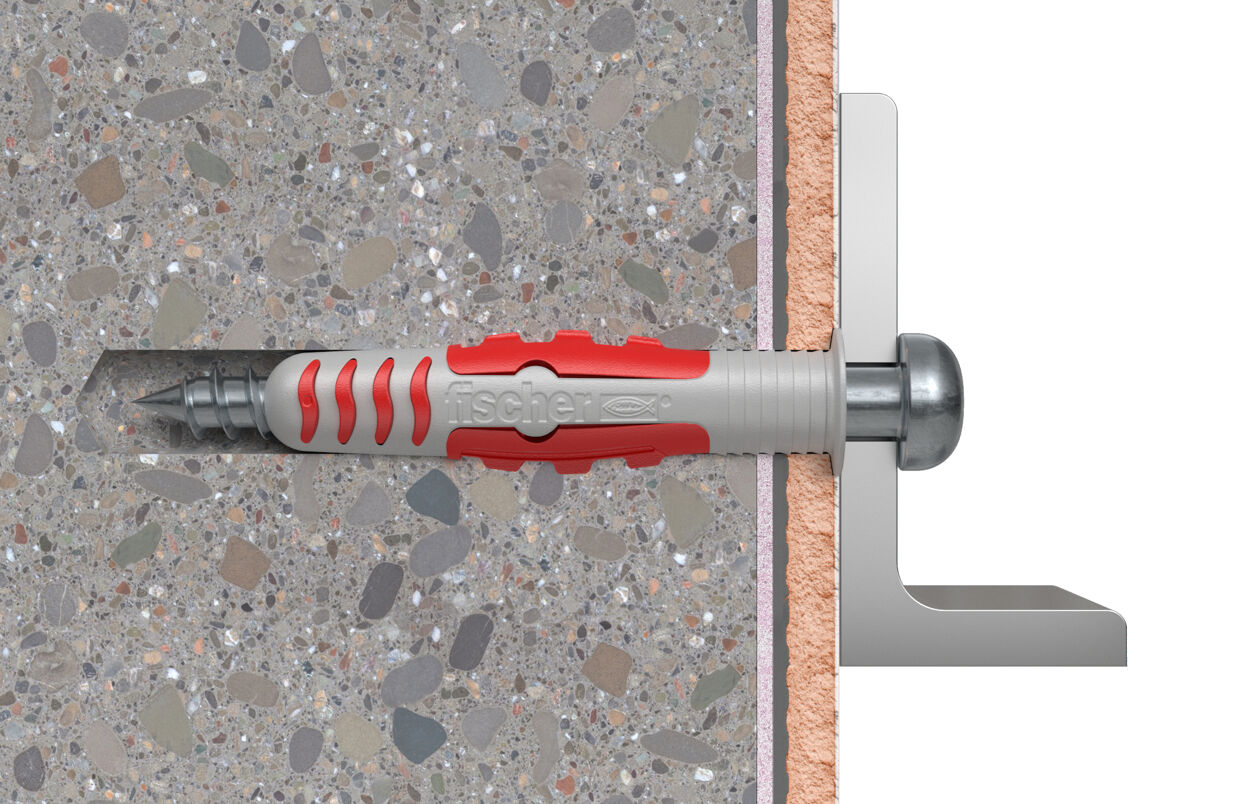

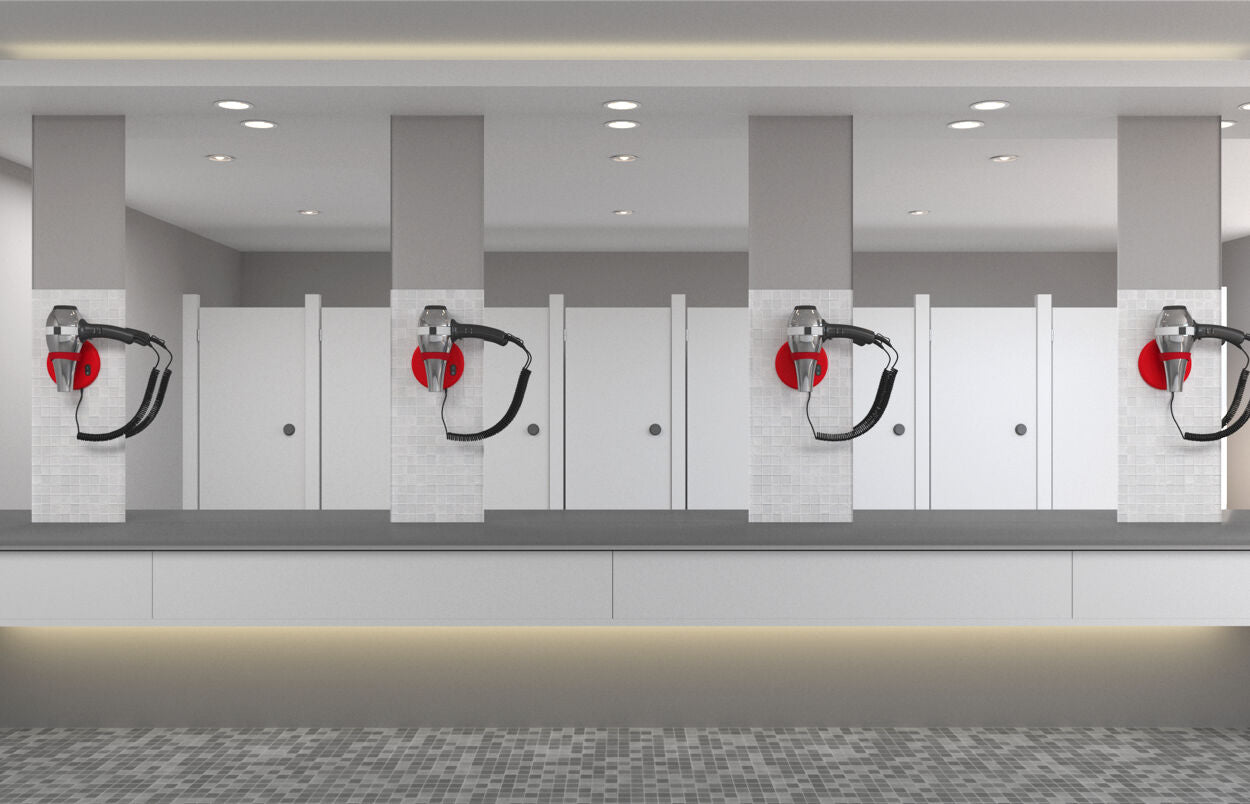

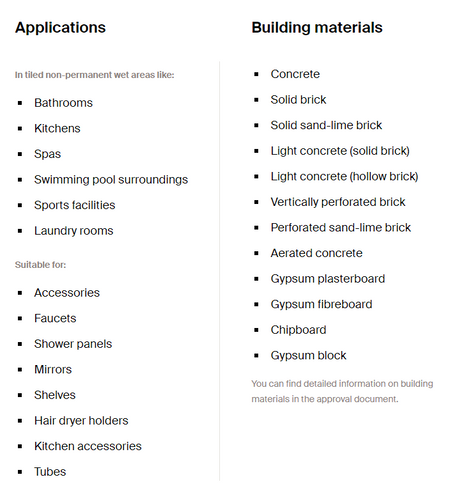

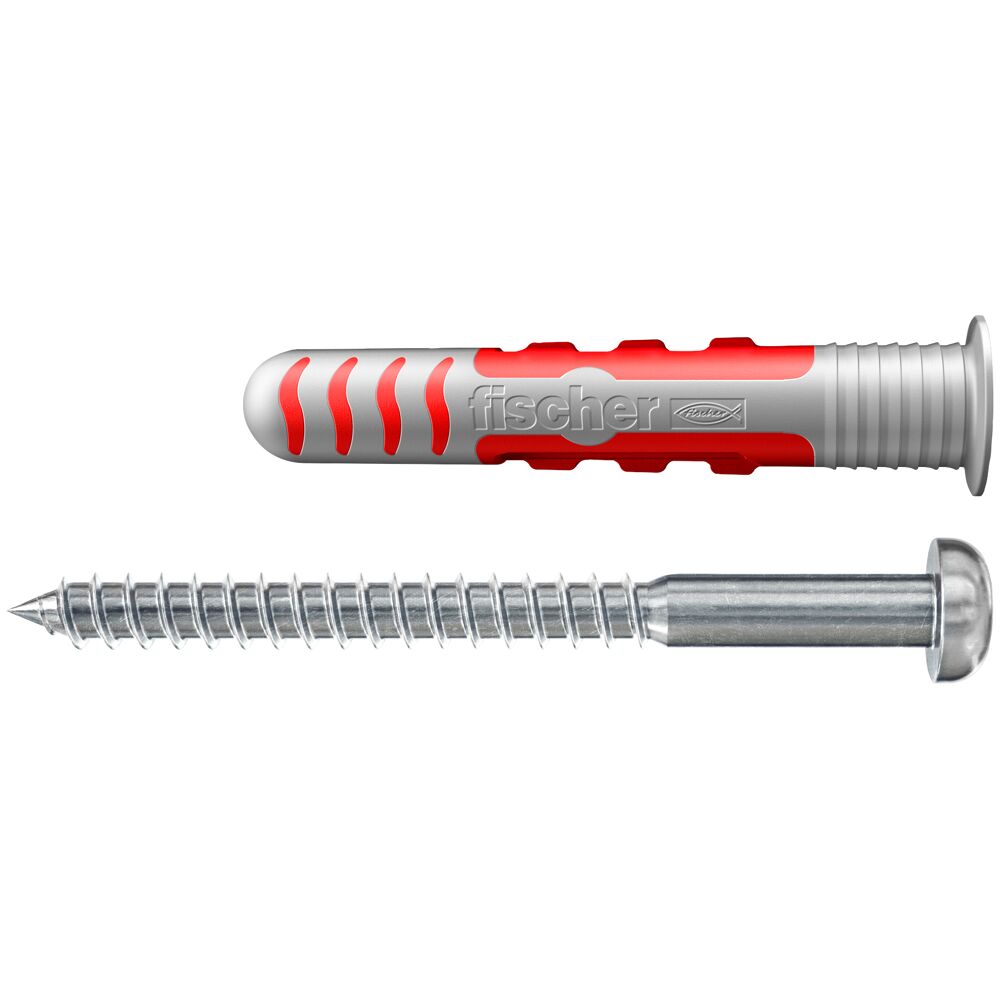

fischer DuoSeal is a 2-component plug those seals the drill hole in wet areas without any additional sealing compound. The nylon plug with the enclosed screw has been independently tested by the Testing and Certification Institute of the Säure Fliesner Vereinigung e. V. The watertightness is confirmed in accordance with ETAG 022 and DIN 18534 up to the water exposure class W3-I. Taking into account the national and international sealing standards for wet areas, the DuoSeal in combination with the enclosed screw is suitable for applications in commercial, private and public wet areas which are frequently exposed to splash water and temporarily accumulated water. In any case, please take note of the generally national regulations on the use of plugs in wet areas.

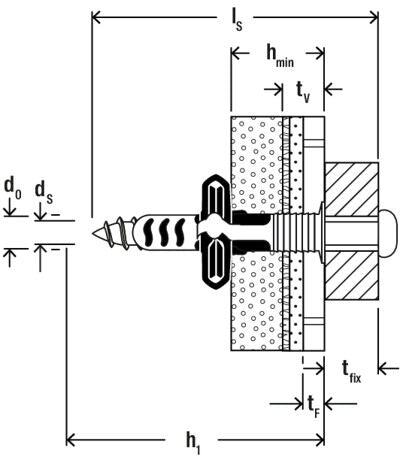

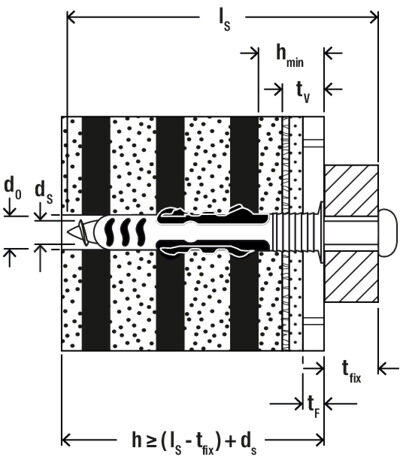

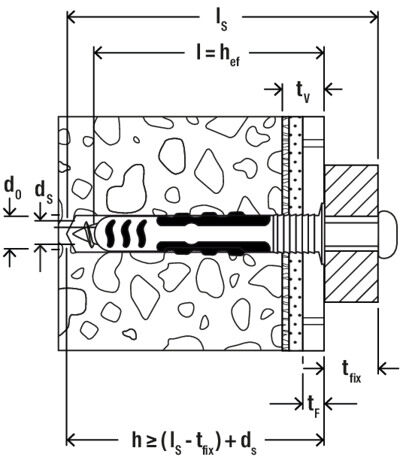

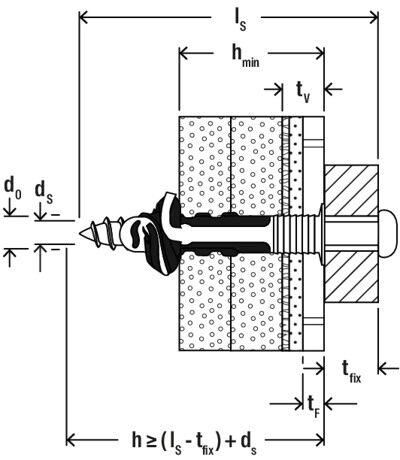

Drill Diameter (mm) Drill Diameter (in) Min. Building
Material Thickness (mm)

Min. Building
Material Thickness (in)
6 0.236 22 0.866
8 0.315 25 0.984

Load Table- Duo Seal

Catalogue- Duo Line Products

Product Catalogue- Duo Seal
