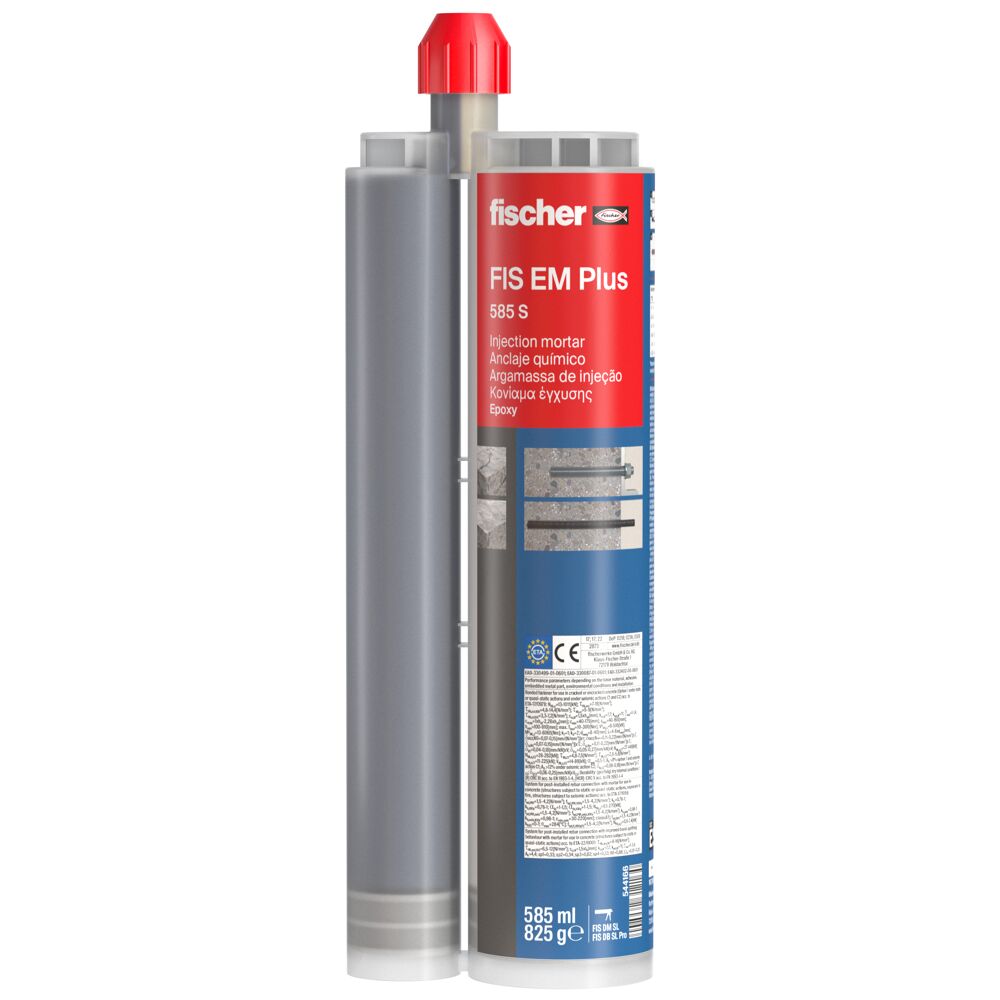

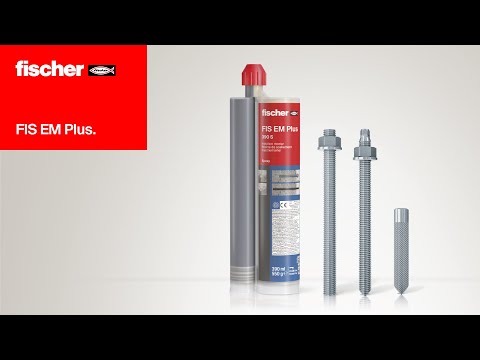

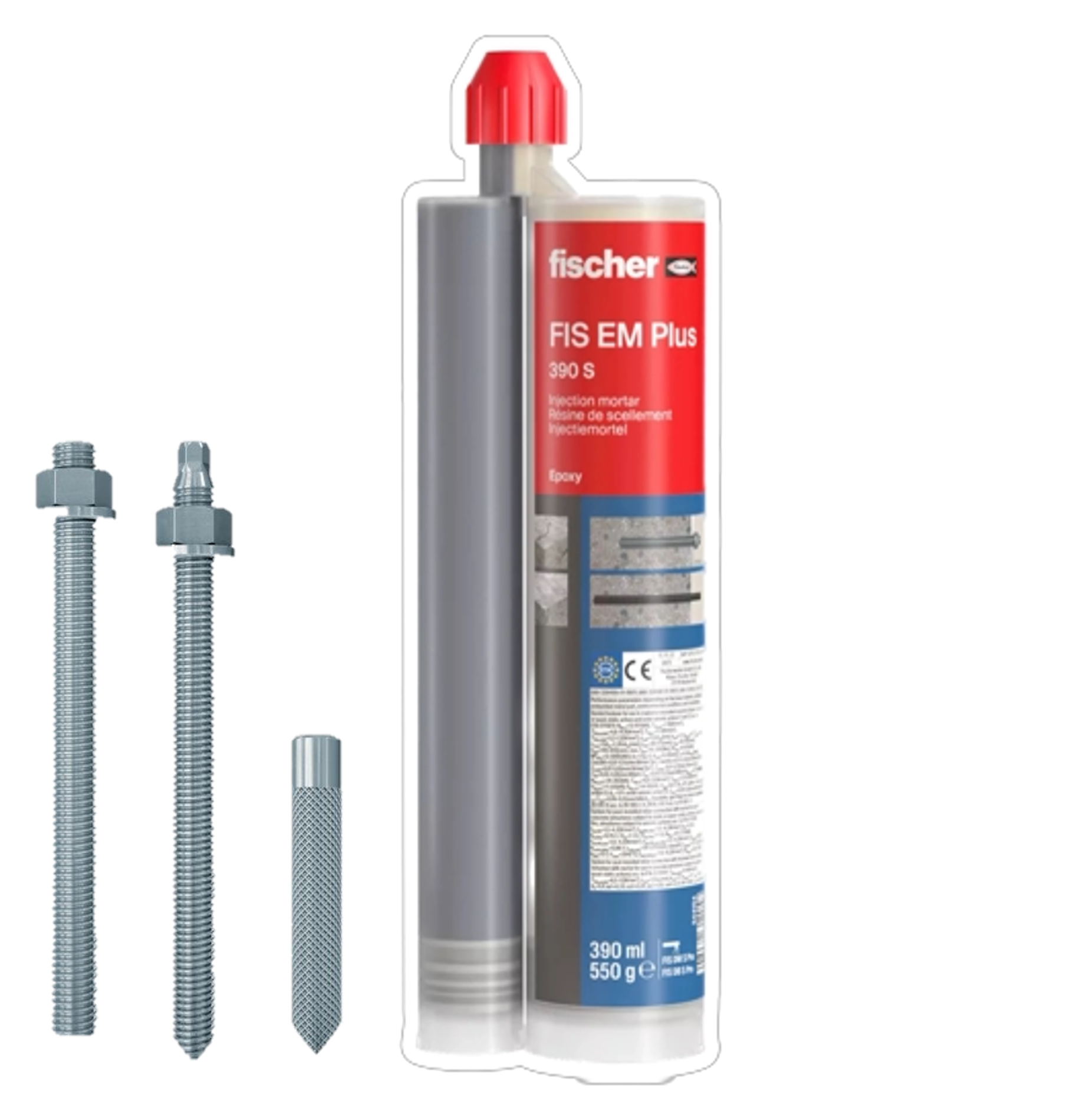

fischer Injection Mortar- FIS EM Plus

SKU: 544174
$117.22
Size
Package

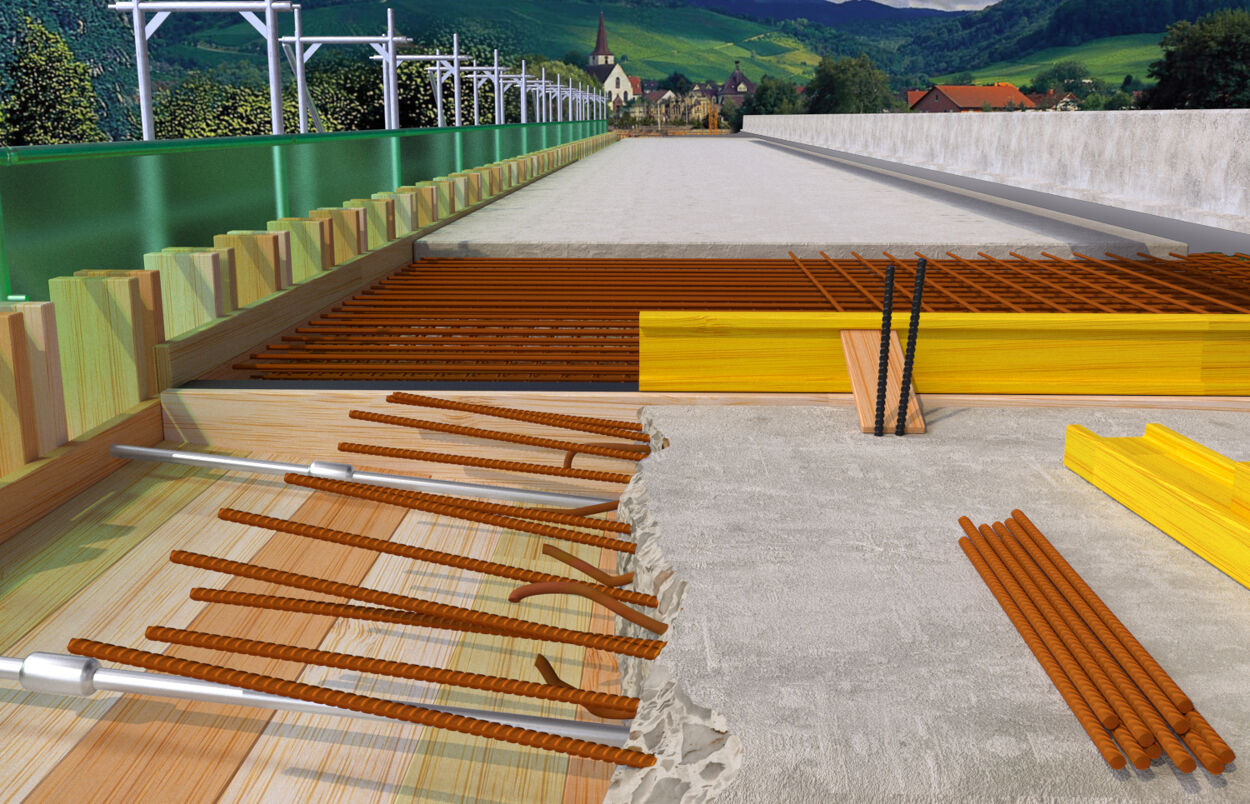

The fischer injection mortar FIS EM Plus is a high-quality epoxy mortar for top load-bearing capacity in cracked and non-cracked concrete and for seismic applications in performance categories C1 and C2. It is suitable for fixations of shear connectors for concrete layers, tall shelvings, and heavy steel constructions both inside and outside. The epoxy mortar is ideally suited for rebar connections that are installed with a large drill hole diameter and a high anchorage depth. It can also be used for diamond-drilled and water-filled drill holes. This product is ICC approved.

ICC Evaluation Report

Fischer FIS EM Plus Adhesive Anchoring System and Post Installed Reinforcing Bar Connections for Cracked and Un-Cracked Concrete. Valid from Sep 2023 to Sep 2025

FIS EM Plus Flyer

Flyer for FIS EM Plus

ETA Certification Document
2020-06-17
European Technical Assessment for fischer injection system FIS EM Plus - Bonded fastener for use in concrete

DoP No. 0218
2021-04-05
Declaration of Performance for fischer injection system FIS EM Plus (Bonded fastener for use in concrete)

DoP No. 0190
2020-02-07
Declaration of Performance for fischer injection system FIS EM Plus (Bonded fastener for use in concrete)

ETA Certification Document
2021-01-22
European Technical Assessment for Rebar connection with fischer injection system FIS EM Plus - Injection system for post-installed rebar connections

DoP No. 0236
2021-01-02
Declaration of Performance for Rebar connection with fischer injection system FIS EM Plus (Mortar for post-installed rebar connections)

ETA Certification Document
2023-07-31
European Technical Assessment for fischer injection system FIS EM Plus - Post-installed reinforcing bar (rebar) connections with improved bond-splitting behavior under static loading and seismic action

DoP No. 0308
2022-06-22
Declaration of Performance for fischer injection system FIS EM Plus (Mortar for post-installed rebar connections)

DIBt, National German Certification
2020-10-29
fischer injection system FIS EM Plus for use in uncoated liquid-tight sealing systems made of concrete (FD / FDE concrete) in SFH facilities. Valid Till 10-20-2025

Test Report- Fire Protection
2019-11-14
fire protection test report- fischer FIS EM Plus Injection system

Curing Times

Curing times for injection mortar FIS EM Plus

Installation Instruction

FIS EM Plus

Load Table

Injection system FIS EM Plus with threaded rod FIS A resp. RG M - Permissible loads of a single anchor in normal concrete of strength class C20/25.

Load Table

Injection system FIS EM Plus with internal threaded anchor RG M I - Permissible loads of a single anchor in normal concrete of strength class C20/25.

Marketing Document

Post-installed rebar connections.

Safety Data Sheet

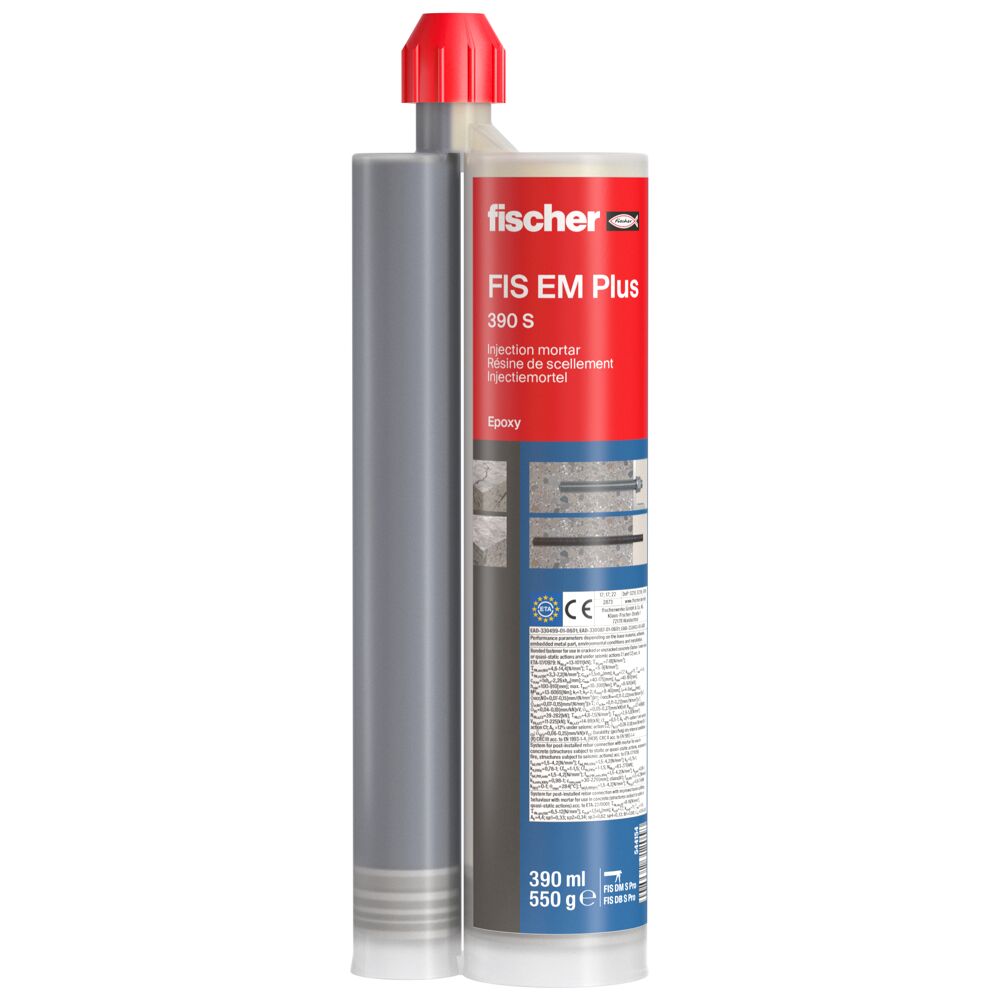

Safety data sheet for 544154 FIS EM Plus 390 S

Safety Data Sheet

Safety data sheet for 567989 FIS EM Plus 585 S

Safety Data Sheet

Safety data sheet for 544167 FIS EM Plus 1500 S

Certificate of 120 Years Service Life

FIS EM Plus-120 Years Serice Life Certificate

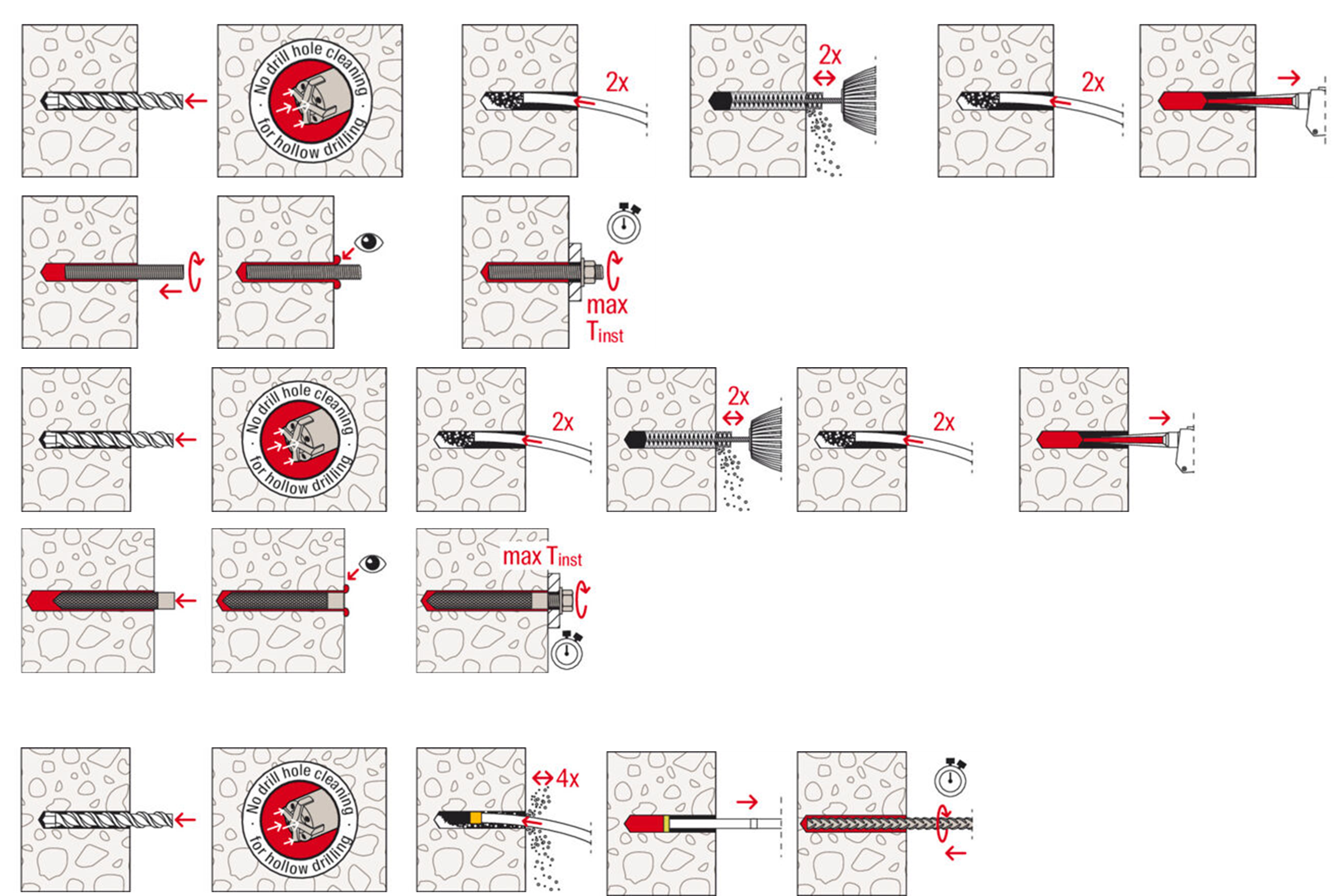

Assembly instruction

Functionality

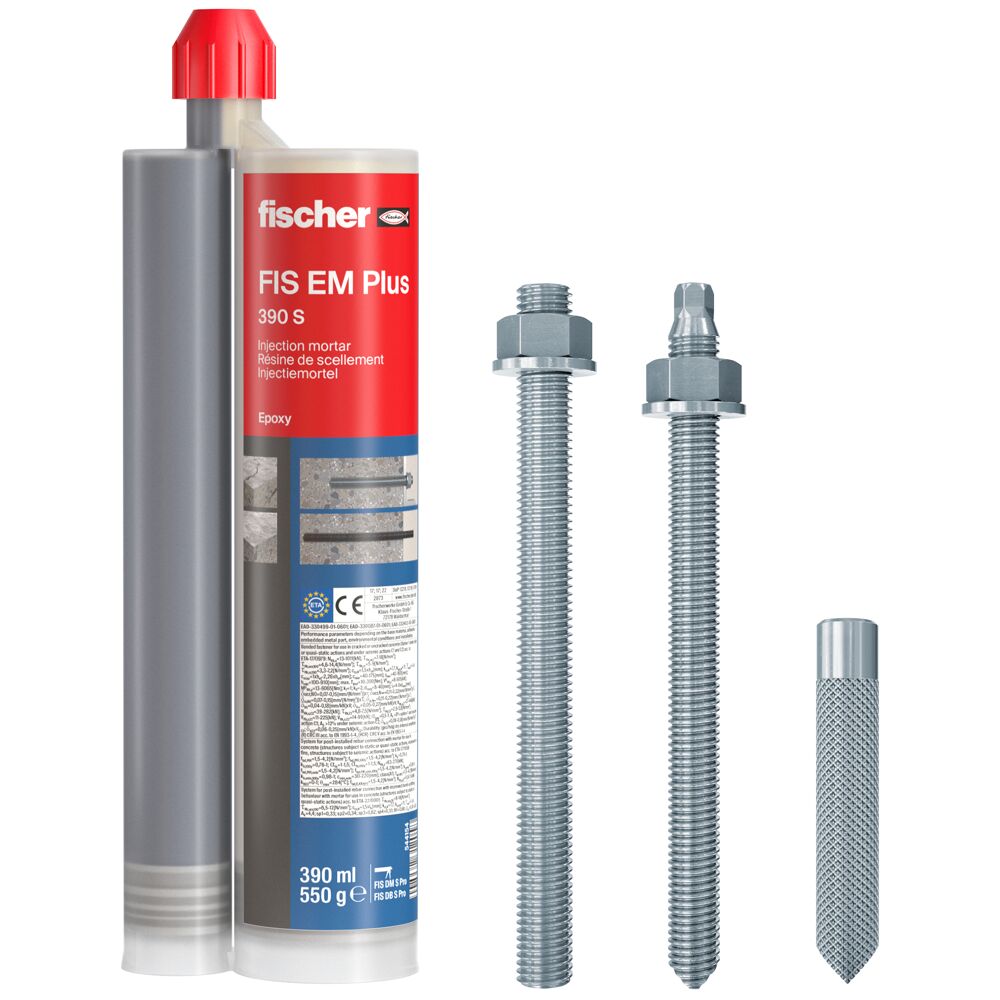

  • The epoxy mortar FIS EM Plus combined with the FIS A threaded rod, is suitable for pre-positioned and push-through installation and with the internal threaded anchor RG M I for pre-positioned installation.
  • Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the injection capsule in the static mixer.
  • The mortar is injected bubble-free from the drill hole base.
  • The mortar bonds the entire surface of the anchor with the drill hole wall and seals off the drill hole.
  • The anchor is set manually by lightly rotating it until it reaches the drill hole base.
  • During push-through installation, the annular gap between the anchor rod and attachment is filled with FIS EM Plus.
